20kWh 30kWh 40kWh 50kWh High Voltage Battery Zog Cia System
Polinovel HV Series muab siab -voltage lithium zog cia nyob rau hauv 192V, 240V, 384V, thiab 480V xaiv rau thaj chaw thiab lub teeb coj mus muag daim ntaub ntawv. Nrog rau tsheb- qib kev tsim khoom, qib siab BMS, thiab cov qauv tsim qauv, cov roj teeb no muaj kev ua haujlwm ruaj khov, muaj peev xwm scalable, thiab txhim khu kev qha fais fab rau tsev thiab kev lag luam ib yam nkaus.
Optimized rau Koj Cov Kev Xav Tau Zog
High Efficiency, Tsawg zog poob
High-voltage system tsim txo cov dej ntws tam sim no, txo qis kev sib kis, thiab txhim kho kev ua haujlwm tag nrho, xa cov zog siv tau ntau dua los ntawm txhua lub voj voog.
Ua rau Automotive Standards
Tsim los nrog siab -kev sib raug zoo LiFePO₄ hlwb nyob rau hauv automotive- cov qauv qib, ua kom muaj kev ua haujlwm ruaj khov, kev nyab xeeb zoo dua, thiab lub neej ua haujlwm ntev nrog kev tu tsis tu ncua.
Smart Energy Management
Kev sib koom ua ke siab -voltage tswj lub thawv thiab ntse BMS ua kom muaj kev soj ntsuam xyuas, tiag -cov ntaub ntawv hloov pauv sijhawm, thiab tsis siv neeg ntsuas ntsuas rau kev ua kom zoo roj teeb noj qab haus huv thiab txhim khu kev qha lub zog tso zis.
Modular thiab Scalable Design
Modular qauv txhawb cov kev hloov pauv hloov pauv, tso cai hloov kho lub peev xwm raws li qhov xav tau ntawm lub zog nce ntxiv -ua kom ntev - lub sij hawm hloov pauv thiab kev tiv thaiv peev.
Specification
| Qauv | HV 204100 | HV307100 | HV409100 | HV512100 |
| Nominal voltage | 204.8V | 307.2V | 409.6V | 512V |
| Nominal Peev Xwm | 100 Aw | 100 Aw | 100 Aw | 100 Aw |
| Zog | PEB 20.48 kWh | 30,72 kWh e | 40.96 kWm 2 | 51,2 kWh wb |
| Them txiav- tawm qhov hluav taws xob | 233.6V | 350.4V | 467.2V | 584V |
| Tshem Tawm - tawm qhov hluav taws xob | 160V | 240V | 320V | 400V |
| Standard Charge Current | 50A | 50A | 50A | 50A |
| Max. Charge tam sim no | 100A | 100A | 100A | 100A |
| Nthuav tawm tam sim no | 100A | 100A | 100A | 100A |
| Peak Discharge Current | 200A | 200A | 200A | 200A |
| Qhov Loj (L * W * H) mm/in | 600*500*1040 (23.6*19.7*40.9") |
600*500*1360 (23.6*19.7*53.5") |
600*500*1680 (23.6*19.7*66.1") |
600*500*2000 (23.6*19.7*78.7") |
| Qhov hnyav | 200kg / 441 lbs | 300kg / 661 lbs | 400kg / 882 lbs | 500kg / 1102 lbs |
| Kev sib txuas lus | RS485/CAN | |||
| Kub | Them nqi: 0 ~ 50 degree; Tawm: -15 ~ 60 degree | |||
Cov npe los ntawm Thawj Hom Inverter
Peb cov roj teeb tau raug teev npe raws li tau tshaj los ntawm ntau lub ntiaj teb lees paub inverter manufacturers. Txhua yam khoom tau dhau los ua qhov kev sim nruj thiab siv tau los xyuas kom meej tias kev sib txuas lus tsis sib haum xeeb, kev ua haujlwm ruaj khov, thiab kev sib raug zoo tag nrho ntawm ntau hom inverter platforms.
Nws ua haujlwm li cas hauv kev xyaum
Tshawb nrhiav cov kev siv tau zoo ntawm peb lub siab -voltage roj teeb hauv ntau qhov chaw lag luam thiab chaw lag luam.
Load Shifting rau Demand Charge Reduction
Cov nqi hluav taws xob ua lag luam feem ntau suav nrog cov nqi xav tau raws li kev siv lub zog siab tshaj plaws. Txawm tias luv luv spike tuaj yeem nce nqi txhua hli.
Lub HV Series saib xyuas lub sijhawm tiag tiag - lub sijhawm thauj khoom thiab tuaj yeem ntxiv cov phiaj xwm hluav taws xob thaum mus txog lub hom phiaj siab kawg. Thaum lub sijhawm tawm - cov sij hawm siab tshaj, lub roj teeb rov qab qis dua - lub sij hawm tus nqi.
Qhov nruab nrab -rau- lub tsev loj nrog HVAC, tub yees, thiab cov khoom siv tuav cov khoom muaj kev thauj khoom thaum yav tav su. Los ntawm kev xa cov HV Series cov chav nyob kom tsim nyog, lub kaw lus tuaj yeem chais ib feem ntawm qhov xav tau siab tshaj plaws, txo cov nqi siab tshaj - ntsig txog cov nqi thiab cov nqi hluav taws xob zoo.

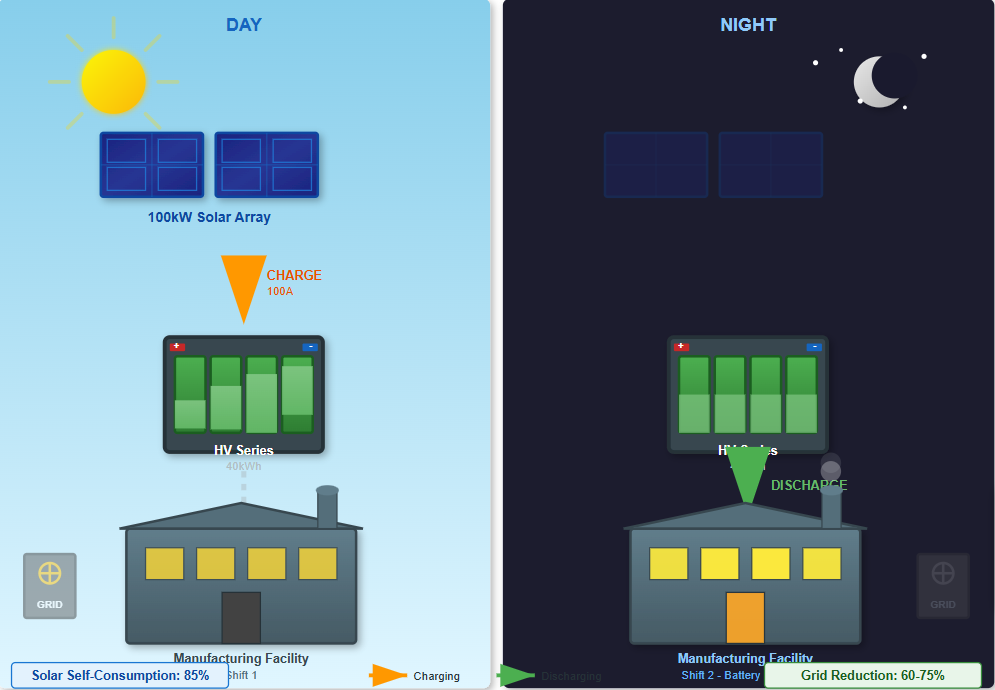

Hnub ci kev koom ua ke rau kev ywj pheej zog
Hnub ci arrays tsim hluav taws xob thaum nruab hnub, tab sis cov chaw feem ntau xav tau lub zog thaum yav tsaus ntuj lossis ua haujlwm hmo ntuj. Yog tsis muaj kev cia khoom, lub hnub ci ntau dhau tuaj yeem raug xa tawm ntawm tus nqi qis, thaum daim phiaj hluav taws xob tau yuav tom qab ntawm tus nqi siab dua.
HV Series ntes cov hnub ci tsim tawm hnub ci thiab tso tawm thaum yav tsaus ntuj ncov lossis ua haujlwm hmo ntuj. Muaj peev xwm them nqi tam sim no tso cai rau lub zog ceev ceev hauv lub hnub ci qhov rais.
Ib qho chaw tsim khoom nrog lub hnub ci ru tsev thiab HV Series tuaj yeem khaws cov khoom siv ntau hnub. Lub zog khaws cia yog siv thaum yav tsaus ntuj lossis yav tsaus ntuj ua haujlwm, txo qis kev cia siab ntawm daim phiaj hluav taws xob thiab ua kom lub hnub ci ntawm tus kheej - noj.
Daim phiaj thaub qab rau kev lag luam txuas ntxiv
Cov txheej txheem tseem ceeb yuav tsum muaj lub zog tsis muaj kev cuam tshuam thaum lub sijhawm ua haujlwm tsis tiav. HV Series muab kev hloov pauv tsis siv neeg, tswj lub zog rau cov khoom tseem ceeb hauv milliseconds.
Tsis zoo li cov tshuab hluav taws xob diesel uas siv ob peb feeb los pib thiab xav tau kev saib xyuas tsis tu ncua, HV Series teb tam sim ntawd, tshem tawm cov hluav taws xob sib txawv uas tuaj yeem ua rau lub cev poob lossis cov khoom poob.
Cov chaw uas muaj qhov kub thiab txias- cov haujlwm tseem ceeb, xws li cov chaw cia txias lossis cov khoom siv kho mob, tuaj yeem tswj xyuas cov haujlwm tseem ceeb thaum muaj kab sib txuas. Los ntawm kev xa cov HV Series cov chav nyob kom tsim nyog, lub kaw lus ua kom muaj kev ua haujlwm tas mus li thiab tiv thaiv cov khoom lag luam lossis cov khoom muaj txiaj ntsig.
Kev siv Microgrid
Cov chaw nyob hauv tej thaj chaw deb lossis kab sib chaws - cov chaw ntug feem ntau ntsib cov teeb meem kev ntseeg siab. HV Series tuaj yeem tsim lub hauv paus ntawm microgrid, sib koom ua ke hnub ci tsim, roj teeb cia, thiab xaiv lub tshuab hluav taws xob thaub qab.
Lub peev xwm sib txuas ua ke tso cai rau lub tsev hluav taws xob thiab muaj peev xwm ua tau raws li qhov xav tau ntawm microgrid. Ua ke nrog kev lag luam- qauv kev sib txuas lus raws tu qauv, lub kaw lus ntse muab qhov tseem ceeb ntawm lub hnub ci zog, ntxiv nrog roj teeb lub zog, thiab tsuas yog koom nrog cov tshuab hluav taws xob thaum tsim nyog.
Kev lag luam tej thaj chaw deb tau siv lub microgrid siv HV Series roj teeb, hnub ci vaj huam sib luag, thiab lub tshuab hluav taws xob thaub qab. Lub kaw lus txo qis kev siv roj av, txo cov nqi ua haujlwm, thiab txhim kho tag nrho lub zog kev ntseeg tau.
Installation thiab kev koom ua ke
Kawm txog cov txheej txheem xa tawm, cov kev xav tau ntawm hluav taws xob, thiab kev saib xyuas profile ntawm peb lub siab -voltage roj teeb system.
Deployment Approach
Lub txee ships raws li ib tug ua tiav chav tsev nrog integrated roj teeb tswj, tshem tawm qhov yuav tsum tau rau teb thaiv ntawm ib tug neeg lub hlwb. Kev teeb tsa rau ib chav tsev yog ncaj nraim thaum hluav taws xob ntxhib - nyob rau hauv tiav.
Kev xav tau hluav taws xob
High -voltage DC systems yuav tsum muaj kev nyab xeeb kom raug tshem tawm thiab hauv av. Lub compact tsim haum nyob rau hauv cov qauv hluav taws xob chav yam tsis tas yuav tsum tau rau cov tuam tsev roj teeb siab.
Inverter Compatibility
Tau tshaj cov lag luam feem ntau inverters txhawb siab -voltage DC input. Hybrid inverters nrog ua - tus tswj hwm tuaj yeem ua kom yooj yim rau kev tsim qauv rau kev teeb tsa tshiab.
Maintenance Profile
LiFePO4 chemistry muab kev ruaj ntseg thiab kev saib xyuas tsawg. Kev soj ntsuam xyuas qhov muag pom txhua lub hlis twg thiab kev kuaj xyuas lub peev xwm txhua xyoo npog feem ntau cov kev xav tau. Tsis zoo li cov hlau lead-acid roj teeb, tsis muaj electrolyte watering los yog lub davhlau ya nyob twg yuav tsum tau ntxuav.
Qhov System Expansion
Ntxiv muaj peev xwm yog ncaj nraim nrog lub modular HV Series tsim. Cov chav nyob ntxiv tuaj yeem txuas nrog hauv koob lossis sib npaug, thiab kev sib txuas lus sib txuas ua ke tso cai rau ntau chav nyob ua haujlwm raws li ib leeg, lub hauv paus tswj hwm roj teeb lub txhab nyiaj.
System Expansion Options
Series kev twb kev txuas rau voltage nce
Parallel kev sib txuas kom muaj peev xwm nce
Centralized BMS rau ntau -unit tswj
Scalable kev sib txuas lus architecture
Pib Kev Txhim Kho
Pib nrog ob peb chav nyob raws li qhov xav tau ntawm lub zog tam sim no
Kev nthuav dav thawj zaug
Ntxiv ntau chav nyob raws li qhov xav tau ntawm lub zog lossis lub hnub ci muaj peev xwm loj tuaj
Hnub ci kev koom ua ke
Nthuav kom phim lub hnub ci muaj peev xwm
Full System
Ntau chav nyob tuaj yeem ua ke kom ua tiav lub peev xwm
Kev sib tw txoj hauj lwm
Saib yuav ua li cas Polinovel HV Series piv rau lwm lub zog cia daws teeb meem.
Kev ntsuas hluav taws xob qis (48V)
Tam sim no tuav
Kev xa tawm lub zog siab ntawm qhov tsis tshua muaj hluav taws xob yuav tsum muaj tam sim no siab heev, nce tus neeg xyuas pib qhov loj me thiab tus nqi hluav taws xob. HV Series muab tib lub zog ntawm qhov qis dua tam sim no, ua kom yooj yim rau kev tsim qauv.
Scalability
Ntxiv lub peev xwm rau qis-voltage systems yuav tsum muaj ntau lub roj teeb sib npaug, uas qhia txog kev sib tw ntsuas tam sim no. High-voltage systems scale yooj yim ntawm kev sib txuas series, muab kev nthuav dav yooj yim dua thiab txhim khu kev qha.
Kev ua tau zoo
Cov tam sim no qis dua txo qhov kev poob qis, txhim kho puag ncig - kev ua haujlwm zoo rau kev siv hluav taws xob siab -.
Versus Lead -Acid Solutions
Muaj peev xwm siv tau
LiFePO4 txhawb nqa tob tob, ua rau feem ntau ntawm lub peev xwm siv tau yam tsis muaj kev ua neej luv.
Lub neej voj voog
LiFePO4 muab ntau txhiab lub voj voog nyob rau hauv qhov tob ntawm qhov tso tawm, ntau tshaj cov hmoov lead -acid lwm txoj.
Kev tu vaj tse
LiFePO4 yog qhov tseem ceeb ntawm kev saib xyuas-dawb, tsis zoo li cov hmoov lead- cov roj teeb kua qaub uas yuav tsum tau kuaj xyuas cov dej tsis tu ncua, kev tu lub davhlau ya nyob twg, thiab kev sib npaug sib npaug.
Versus Alternative Lithium Chemistry
LiFePO4 muaj zog tsawg dua li NMC lossis NCA lithium chemistry tab sis muaj kev ruaj ntseg zoo dua thiab ua haujlwm ntev. Rau cov ntawv thov nyob ruaj ruaj uas qhov hnyav tsis tseem ceeb, qhov kev nyab xeeb profile thiab 10-15 xyoo lifespan ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev lag luam.
Cov txiaj ntsig tseem ceeb ntawm LiFePO4:
Kev sib piv
| Feature | Polinovel HV Series | 48V Lead-Acid | 48V Lithium roj teeb | NMC Lithium roj teeb |
|---|---|---|---|---|
| Voltage Ntau | 204.8V-512V | 48V | 48V | 48V-192V |
| Peev Xwm Ntau | 20-51 kWh/m² | 5-20 kWh/bank | 10-40 kWh/bank | 10-30 kWh/bank |
| Lub neej voj voog | 4,000-6, 000+ cycles @ 80% DoD | 800-1,200 cycles @ 50% DoD | 3,000-5,000 cycles @ 80% DoD | 3,000-4,000 cycles @ 80% DoD |
| Qhov tob ntawm kev tso tawm | 95% | 50% | 80-90% | 80-90% |
| Kev khiav hauj lwm Temp Range | -15℃txog 60℃(tso tawm) | -20℃rau 50 degree | 0℃rau 50 degree | 0℃rau 50 degree |
| Kev tu | Tsawg kawg | Siab | Tsawg kawg | Tsawg kawg |
| Kev nyab xeeb | Zoo heev | Zoo | Zoo | Nruab nrab |
| Installation complexity | Tsawg | Siab | Nruab nrab | Nruab nrab |
| Scalability | Zoo heev | pluag | Nruab nrab | Nruab nrab |
Kev Tiv Thaiv
Cov Kev Tswj Hluav Taws Xob Ua Ke muab kev tiv thaiv zoo rau kev ua haujlwm ruaj khov.
Kev ntsuas hluav taws xob
Tsis tu ncua taug qab txhua pab pawg ntawm tes, tiv thaiv overcharge (uas ua rau lub hlwb puas) thiab tshaj - tso tawm (uas txo qhov peev xwm). Lub kaw lus yuav txiav cov khoom thauj yog tias qhov hluav taws xob poob qis dua qhov chaw nyab xeeb.
Thermal Management
Kub sensors thoob plaws hauv pob kaw kom them yog tias cov hlwb tshaj 50℃lossis tshem tawm cov loads yog tias qhov kub ntawm qhov kub siab tshaj 60 degree. Hauv cov xwm txheej txias, lub kaw lus txwv cov nqi tam sim no kom txog thaum cov cell ncav cuag qhov kub thiab txias.
Tam sim no txwv
Yog tias tso tawm tam sim no tshaj qhov ntsuas qhov tshwj xeeb, BMS nce qib txo lub zog muaj zog los tiv thaiv kev puas tsuaj. Qhov no tiv thaiv downstream faults los yog inverter malfunctions.
Kev Sib Txuas Lus Fault Detection
Kev poob ntawm kev sib txuas lus ntawm lub roj teeb thiab inverter ua rau muaj kev nyab xeeb kaw es tsis tso cai rau kev tswj tsis tau.
Warranty thiab Longevity
Txuj Kev Pabcuam
5-xyoo lav ntawm lub roj teeb muaj peev xwm, lav kom tswj tau 70% ntawm lub peev xwm ntsuas los ntawm lub sijhawm lav raws li kev ua haujlwm ib txwm muaj.
Cia siab rau Kev Pabcuam Lub Neej
Nrog rau kev ua haujlwm kom zoo, lub kaw lus yuav tsum xa 4,000-6,000 lub voj voog ntawm 80% qhov tob ntawm qhov tso tawm. Rau cov ntawv thov kev caij tsheb kauj vab txhua hnub, qhov no sawv cev rau 15+ xyoo kev pabcuam. Rau cov ntawv thov thaub qab nrog caij tsheb kauj vab, 20+ xyoo ua haujlwm tau ua tiav.
Txhawb Infrastructure
Kev pab txhawb nqa muaj nyob rau hauv lub system commissioning thiab thoob plaws lub neej ua hauj lwm. Firmware hloov tshiab hais txog qhov yuav tsum tau muaj kev sib raug zoo lossis txhim kho kev ua haujlwm raws li cov ntaub ntawv hauv cheeb tsam.
Qhov no puas yog rau koj txoj haujlwm?
Txiav txim siab yog tias Polinovel HV Series yog lub zog txuag kev daws teeb meem rau koj qhov chaw.
Qhov no ua rau kev nkag siab yog tias
Cov nqi hluav taws xob ua lag luam siab dua $ 3,000 ib hlis nrog cov nqi thov tseem ceeb
Cov chaw sib txuas hnub ci tsim nrog 24-teev lossis ua haujlwm ua haujlwm ntau
Kev ua haujlwm uas lub zog zoo lossis kev ntseeg tau ncaj qha cuam tshuam rau kev tsim khoom lossis nyiaj tau los
Cov chaw npaj yuav nthuav dav lub peev xwm tsim dua tshiab tshaj 3-5 xyoos
Tej zaum koj yuav xav tau lwm txoj kev yog tias
Koj qhov kev ua haujlwm feem ntau yog thaj chaw nyob - nplai (tsawg dua 30 kWh txhua hnub noj)
Koj nyob hauv ib cheeb tsam nrog tus nqi hluav taws xob tiaj tus thiab lub sijhawm tsawg kawg nkaus - ntawm - siv tus nqi
Koj yuav tsum tau portable lossis mobile zog cia
Koj lub vev xaib tsis muaj hluav taws xob tsim nyog rau cov tshuab hluav taws xob siab -voltage DC
Cov kauj ruam tom ntej
Load Analysis
Pib nrog kev txheeb xyuas kev thauj khoom npog 12 lub hlis ntawm cov nqi hluav taws xob. Txheeb xyuas koj qhov kev xav tau siab tshaj plaws, lub sijhawm - ntawm - siv cov qauv, thiab cov nqi hluav taws xob.
Solar Integration Planning
Yog tias koj muaj hnub ci uas twb muaj lawm lossis tab tom npaj kev teeb tsa, suav koj tus kheej tam sim no - tus nqi noj. Qhov sib txawv ntawm tiam thiab kev noj zaub mov qhia koj lub sijhawm khaws cia.
Kev them nyiaj yug System
Polinovel muab kev sab laj kev sib tham los pab kom phim qhov kev teeb tsa rau koj cov kev xav tau tshwj xeeb. Tiv tauj peb los tham txog koj daim ntawv thov.
