700W / 710W / 720W
Kev xaiv fais fab
22.54%–23.18%
Module Efficiency
1500V
Qhov System Voltage
132 N-Type Bifacial Mono Cells
Cell Format

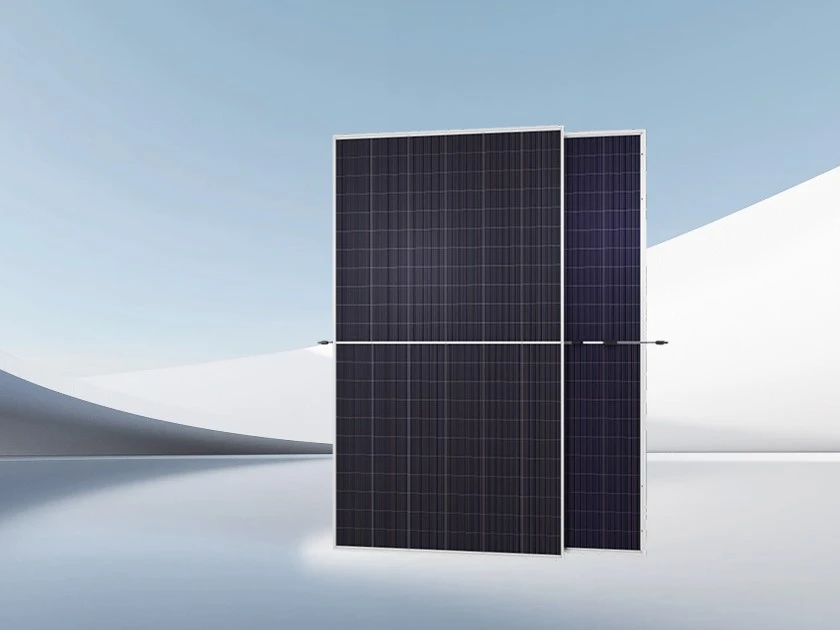

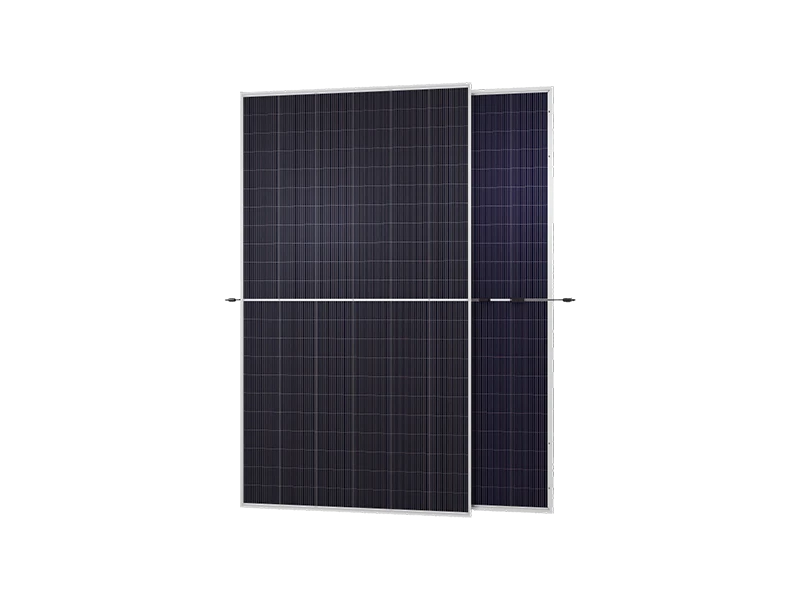

700W Bifacial TOPCon Hnub Ci Vaj Huam Sib Luag
Lub 700W Bifacial TOPCon Solar PV Vaj Huam Sib Luag yog lub siab -lub hnub ci PV vaj huam sib luag tsim los rau loj -scale BESS tej yaam num, kev siv hluav taws xob- teev hnub ci qhov project, thiab hauv av-mounted PV nroj tsuag. Piv nrog rau qis dua - fais fab modules, nws 700W tso zis pab tej yaam num npaj loj PV muaj peev xwm nrog tsawg panels, txhawb ntau npaum array layout thiab nyob rau hauv - site installation ua hauj lwm.
Ua nrog bifacial TOPCon thev naus laus zis, 210M ib nrab- qauv tsim ntawm tes, thiab 1500V qhov kev sib raug zoo, lub 700W hnub ci vaj huam sib luag no yog tsim rau qhib- qhov chaw ua haujlwm uas muaj zog ntau dua, muaj zog sab nraum zoov durability, thiab ntev - lub hnub ci tswv yim yuav tsum tau.
Qhov zoo ntawm peb cov hnub ci vaj huam sib luag
Cov zis ntau dua rau hnub ci loj - khaws cia thiab siv hluav taws xob - nplai PV tej yaam num.
Bifacial Gain rau Qhib -Field Sites
Lub bifacial TOPCon tsim siv lub hnub ci zog los ntawm ob sab pem hauv ntej thiab nram qab nyob rau hauv cov xwm txheej uas tsim nyog, pab txhim kho tag nrho lub zog tawm los hauv kev qhib- teb, pom hauv av, thiab hnub ci loj - khaws cia qhov project ib puag ncig.
Txo Module suav kom muaj peev xwm loj
Nrog 700W tso zis rau ib lub vaj huam sib luag, qhov siab no - lub hnub ci PV vaj huam sib luag pab cov haujlwm loj mus txog qhov yuav tsum tau muaj peev xwm nrog tsawg dua modules, ua kom yooj yim rau kev npaj loj BESS, hauv av -mounted PV, thiab kev siv hluav taws xob- teev hnub ci cia layouts.
Simplify Loj -Array Configuration
Lub 210M ib nrab- xovtooj hom thiab 1500V system compatibility txhawb DC loj dua - sab tsim, pab txo layout complexity rau siab -muaj peev xwm PV arrays thiab hnub ci- khaws cia tej yaam num.
Ua rau kev siv hluav taws xob sab nraum zoov2400Pa cua load tsis kam, 5400Pa daus load tsis kam, IP67 / IP68 hlws ris lub thawv tiv thaiv, tiv thaiv -PID kev ua tau zoo, thiab ob chav EL tshuaj xyuas pab txhawb kev siv sijhawm ntev - siv rau hauv kev thov sab nraum zoov PV project.
Specification
| Yam khoom |
700W Model |
Model: 710W |
Qauv: 720W |
| Qhov ntev | 2384 x 1303 x 33 hli | ||
| STC NOCT | STC NOCT | STC NOCT | |
| Peak Power ntawm STC (Pmax) | 700W 531W | 710W 539W | 720W 547W |
| Lub zog siab tshaj plaws | 40.72V 38.31V | 41.12V 38.69V | 41.52V 39.07V |
| Maximum fais fab tam sim no | 17.20A 13.84A | 17.27A 13.93A | 17.34A 14.00A |
| Qhib Circuit Court voltage | 48.86±3%V 46.17±3%V | 49.34±3%V 46.63±3%V | 49.82±3%V 47.09±3%V |
| Module Efficiency | 22.54% | 22.86% | 23.18% |
| Cov xwm txheej ua haujlwm | |||
| Maximum System Voltage | 1500V | ||
| Maximum Series Fuse Rating | 25A / 30A | ||
| Hwj chim Tolerance | 0~+3W | ||
| Pmax Kub Coefficient | -0.350% / degree | ||
| Voc Temperature Coefficient | -0.250% / degree | ||
| Isc Temperature Coefficient | +0.040%/ degree | ||
| NOCT Nominal Operating Cell Temperature | 45 ± 2 degree | ||
| Kev khiav hauj lwm thiab cia kub | -40℃~ +85 degree | ||
| Cov ntaub ntawv siv | |||
| Hom Cell | 210 × 105 N Hom Bifacial Mono | ||
| Xov tooj ntawm tes | 132(12 × 11) | ||
| Pem Hauv Ntej Cover | Tsawg-hlau tempered iav / 2.0mm | ||
| Ncej | Anodized Aluminium Alloy | ||
| Junction Box | IP67 / IP68 | ||
| Kab | 4mm² cable, 30cm + MC4 | ||
| Qhov hnyav | 38.00 Nws | ||
Paub meej cov kev qhia tshwj xeeb
Vim li cas TOPCon Hnub Ci PV Vaj Huam Sib Luag Fits Loj Project Economics
Ntau Lub Hwj Chim Rau Ib Module
Nrog 700W, 710W thiab 720W qauv kev xaiv, pab pawg ua haujlwm tuaj yeem ncav cuag lub hom phiaj DC lub peev xwm nrog cov qauv tsawg dua li qis dua -wattage lwm txoj kev. Tsawg dua modules tuaj yeem ua kom yooj yim rau kev npaj array thiab txo tus naj npawb ntawm cov qauv rov ua dua - theem kev teeb tsa yuav tsum tau ua rau lub peev xwm muab.
Bifacial Zog Capture rau Qhib Chaw
N-hom bifacial mono tsim txhawb nqa pem hauv ntej- sab tiam thiab sab nraub qaum- sab zog ntes qhov twg cuam tshuam irradiance mus txog tom qab ntawm lub module. Qhov kev pab cuam tiag tiag nyob ntawm qhov chaw albedo, kab sib nrug, mounting qhov siab, qaij thiab lwm yam kev ua haujlwm, yog li cov qauv tsim tawm yuav tsum ua raws li qhov chaw tiag tiag.
Siab zog ceev rau loj arrays
Module efficiency nce los ntawm 22.54% ntawm 700W qauv mus rau 23.18% ntawm 720W qauv thaum cov teev qhov ntev tseem nyob 2384 x1303x33(LxWxH). Qhov no tso cai rau EPC pawg los sib piv cov teeb tsa hluav taws xob tiv thaiv thaj chaw uas muaj nyob rau hauv qhov project siv cov ntaub ntawv paub tseeb es tsis yog qhov kev thov "siab-kev ua tau zoo".
1500V Architecture rau Utility Layouts
1500V qhov siab tshaj qhov system voltage txhawb siab -voltage DC architecture feem ntau siv nyob rau hauv loj PV arrays. Qhov kawg txoj hlua sizing tseem yuav tsum tau kuaj xyuas cov module Voc, qhov kub thiab txias, txwv inverter thiab qhov project hluav taws xob tsim ua ntej kev teeb tsa.
N-Type Bifacial TOPCon Technology rau cov xwm txheej tiag tiag
210 × 105 N Hom Bifacial Mono Cells
Lub module siv 210 × 105 N Hom Bifacial Mono hlwb hauv 132- cell configuration. Qhov loj - hom ntawv cell architecture txhawb nqa lub zog siab uas xav tau los ntawm kev siv hluav taws xob thiab hauv av-mounted systems thaum khaws cov ntaub ntawv hluav taws xob kom meej meej rau qhov project engineering.
Ib nrab -Cell Layout rau Loj PV Array Planning
Lub 132-cell, 12 × 11 layout yog tsim nyob ib ncig ntawm lub siab zog module hom. Rau cov pab pawg EPC, qhov txiaj ntsig tseem ceeb yog qhov ntsuas qhov ntsuas qhov ntsuas qhov taw qhia thiab hluav taws xob profile uas tuaj yeem muab tso rau hauv txoj hlua tsim, mounting layout thiab DC muaj peev xwm suav.
Temperature Data for Engineering Review
Cov npe Pmax kub coefficient yog -0.350% / degree, nrog Voc coefficient ntawm -0.250% /℃thiab Isc coefficient ntawm +0.040% /℃. Cov txiaj ntsig no tso cai rau cov neeg tsim qauv ntsuas kev ua haujlwm thiab kev coj tus cwj pwm hluav taws xob hla kev hloov pauv kev ua haujlwm kub tsis txhob cia siab rau STC cov zis.
Positive Power Tolerance
Daim ntawv teev lub zog kam rau ua ntawm 0 ~ +3W muab cov txiaj ntsig zoo tso cai rau kev lees txais qhov project thiab kev faib cov qauv. Qhov kawg nruab qhov system tseem yuav tsum tau tsim los siv cov yam ntxwv hluav taws xob ntawm cov qauv xaiv 700W, 710W lossis 720W.
Qhov twg 700W Bifacial TOPCon Module ntxiv tus nqi tshaj plaws
Kev siv hluav taws xob-Sale PV thiab Renewable Energy Plants
High module tso zis, 1500V compatibility thiab 2384 x1303x33 (LxWxH) module hom ua rau cov koob no cuam tshuam rau DC arrays loj uas cov neeg tsim khoom yuav tsum npaj lub peev xwm, suav module, cov hlua hluav taws xob thiab cov khoom siv sab nraum zoov ua ke. Rau cov phiaj xwm sib txuas ua ke nrog kab sib chaws- teev cia, Polinovel'skev siv hluav taws xob- nplai cog kev daws teeb meemqhia tias lub hnub ci loj npaum li cas tuaj yeem ua haujlwm nrog lub zog cia ntawm cov nroj tsuag.
Hauv av -Mounted thiab Bifacial- Cov Chaw Nyob Zoo
Hauv av- cov haujlwm mounted tuaj yeem siv tau los ntawm kev siv lub ntsej muag bifacial thaum sab nraub qaum tau txais kev txaus ntshai irradiance. Cov neeg tsim khoom hauv tsev yuav tsum ntsuas cov av albedo, kab sib nrug, qhov siab ntawm qhov siab, shading thiab cov qauv tsim ua ntej kwv yees qhov nce ntawm bifacial. Lub module tau hais tias 2400Pa cua thiab 5400Pa daus load kuj tseem muab cov ntsiab lus txhais rau qhov kev tshuaj xyuas cov qauv.
Co-Nyob hauv Solar Farm thiab Battery Storage
Rau qhov chaw loj uas PV tiam thiab roj teeb cia sib koom ua ke qhov project infrastructure, kev xaiv module yuav tsum tau txiav txim siab nrog rau cov av layout, kab sib txuas, inverter architecture thiab tso chaw cia. Cov tswv yim xa tawm yam tau tham hauv Polinovel'shnub ci ua liaj ua teb roj teeb ciakev taw qhia ncaj qha cuam tshuam thaum lub vaj huam sib luag tsim ib feem ntawm kev sib koom ua ke-tsim tiam-thiab- qhov project cia.
Kev txiav txim siab tsim qhov project ua ntej xaiv 700W, 710W lossis 720W qauv
TOPCon Solar PV Vaj Huam Sib Luag yuav tsum raug xaiv los ua ib feem ntawm tag nrho DC system es tsis yog los ntawm wattage ib leeg. Ua ntej qhov kev txiav txim tiav tiav, EPC pawg yuav tsum sib piv cov qauv xaiv Pmax, qhov siab tshaj plaws lub zog hluav taws xob, lub zog siab tshaj plaws tam sim no, qhib- Circuit Court voltage, module qhov ntev, qhov hnyav, qhov system-voltage limit and temperature coefficients against the inverter, mounting system,string design and local environmental conditions.
- Txoj hlua tsim:xyuas Voc thiab qhov siab tshaj qhov system voltage tiv thaiv qhov chaw kub thiab inverter txwv.
- Tam sim no compatibility:xyuas qhov siab tshaj plaws fais fab tam sim no tiv thaiv MPPT thiab cov kev cai txuas txuas.
- Mechanical layout:paub meej tias 2384 x1303x33(LxWxH) hneev taw, 38.00kg hnyav thiab mounting tsim.
- Environmental loading:Ntsuam xyuas qhov hais tias 2400Pa cua thiab 5400Pa daus load qhov tseem ceeb tiv thaiv qhov yuav tsum tau ua.
- Bifacial layout:qauv rear{0}} sab irradiance siv albedo tiag tiag, clearance, kab sib nrug thiab shading assumpions.
- Hnub ci- khaws cia architecture:tswj PV array sizing nrog inverter thiab cia tsim qhov twg qhov project suav nrog BESS.
Cov ntaub ntawv kev ntseeg siab uas tseem ceeb ua ntej qhov kev yuav khoom
Loj - cov qauv qauv tau raug rau kev thauj mus los, kev tuav, kev teeb tsa thiab lub sijhawm ua haujlwm sab nraum zoov ntev, yog li pawg neeg yuav khoom xav tau cov ntaub ntawv kev ntseeg siab tshwj xeeb es tsis yog cov lus qhia zoo. Nplooj ntawv TOPCon Solar PV Vaj Huam Sib Luag no twb tau muab qhov project- cov ntaub ntawv tseem ceeb suav nrog 2400Pa cua thauj khoom tsis kam, 5400Pa daus load tsis kam, tiv thaiv -PID kev ua haujlwm, ob chav EL tshuaj xyuas, IP67 / IP68 hlws ris lub thawv, -40℃~ +85℃kev khiav hauj lwm thiab cia kub ntau yam, thiab ib xyoo warranty.
- Muab ob npaug rau EL Inspection
- Anti-PID Kev Ua Haujlwm
- Cua thiab daus Load Resistance
- IP67 / IP68 Junction Box
700W vs. 710W vs. 720W: Xaiv los ntawm Cov Kev Xav Tau
Tag nrho peb cov qauv siv tib qhov ntev, kev tsim kho cov ntaub ntawv, 1500V siab tshaj qhov system voltage, kub coefficients thiab 38.00kg module hnyav. Qhov sib txawv tseem ceeb ntawm cov lus qhia tam sim no yog lub zog siab tshaj plaws, lub zog siab tshaj plaws, lub zog siab tshaj plaws tam sim no, qhib - hluav taws xob hluav taws xob, NOCT lub zog thiab kev ua haujlwm ntawm module.
| Xaiv Factor | 700W | 710W | 720W |
|---|---|---|---|
| Peak Power ntawm STC | 700W | 710W | 720W |
| NOCT Lub Zog | 531W | 539W | 547W |
| Module Efficiency | 22.54% | 22.86% | 23.18% |
| Maximum Fais Fab Voltage (STC) | 40.72V | 41.12V | 41.52V |
| Maximum Fais Fab Tam Sim No (STC) | 17.20A | 17.27A | 17.34A |
Qhov siab tshaj -wattage xaiv tsis yog qhov kev xaiv raug rau txhua qhov array. Kev xaiv zaum kawg yuav tsum xav txog txoj hlua hluav taws xob, inverter tam sim no txwv, lub hom phiaj DC muaj peev xwm, module muaj, qhov chaw layout thiab project economics ua ke.
700W Bifacial TOPCon Hnub Ci Vaj Huam Sib Luag FAQs
Q: Cov kev xaiv fais fab twg muaj rau qhov TOPCon hnub ci PV module?
A: Muaj peb lub qauv: 700W, 710W, thiab 720W. Lawv qhov kev ua tau zoo ntawm cov qauv yog 22.54%, 22.86%, thiab 23.18% feem, thiab lawv txhua tus sib koom qhov ntev: 2384 x 1303 x 33 mm (L x W x H).
Q: Puas yog 700W module bifacial?
A: Yog. Nws siv 210 × 10⁵ N- hom bifacial monocrystalline hlwb; raws li qhov chaw tsim nyog, TOPCon bifacial tsim tso cai rau lub zog tsim los ntawm ob sab pem hauv ntej thiab nram qab.
Q: Qhov siab tshaj qhov system voltage yog dab tsi?
A: Qhov siab tshaj qhov system voltage yog 1500V. Txoj hlua tsim yuav tsum tau suav rau qhib - qhov hluav taws xob hluav taws xob, qhov kub thiab txias, thiab cov kev txwv ntawm kev xaiv inverter lossis PCS architecture.
Q: Dab tsi yog qhov module qhov ntev thiab qhov hnyav?
A: Qhov ntev yog 2384 x 1303 x 33 mm (L x W x H), thiab lub module hnyav 38.00 kg.
Q: Dab tsi yog qhov ntsuas kub ua haujlwm rau qhov module no?
A: Kev khiav hauj lwm kub yog -40℃rau +85℃. Qhov kub coefficients yog -0.350% /℃rau siab tshaj plaws fais fab (Pmax), -0.250% /℃rau qhib-circuit voltage (Voc), thiab +0.040%/℃rau luv-circuit tam sim no (Isc).
Q: Cov qauv no puas tuaj yeem siv nrog cov roj teeb lub zog cia?
A: Cov khoom no yog tsim los rau kev siv hluav taws xob- ntsuas hnub ci- ntxiv rau- khaws cia thiab Roj Teeb Zog Cia System (BESS) cov haujlwm. Txawm hais tias PV array siv AC-coupled, DC-coupled, los yog hybrid architecture nyob ntawm tus tsim ntawm inverter, Fais fab Conversion System (PCS), roj teeb, thiab tag nrho cov fais fab nroj tsuag, es tsis yog lub module ib leeg.
Q: Cov ntaub ntawv dab tsi yuav tsum tau lees paub ua ntej muab qhov kev txiav txim?
A: Paub meej tias tus qauv xaiv, qhov peev txheej, qhov ntau, txoj hlua tsim, inverter compatibility, installation yuav tsum tau, lo lus uas peb, cov qauv siv tau, thiab cov sij hawm xa tuaj. Thov siv daim ntawv teev cov khoom kawg thiab qhov project- tshwj xeeb tsim qauv rau kev pom zoo engineering.
Tau qhov twg los TOPCon Solar PV Vaj Huam Sib Luag rau Koj Cov Khoom Siv Tom ntej lossis Hnub Ci -Storage Project
Xa Polinovel koj lub hom phiaj module fais fab, tag nrho PV peev xwm, hom phiaj xwm, kom muaj nuj nqis, lo lus uas peb thiab lub sijhawm xa khoom xav tau. Rau hauv av loj-mounted lossis hnub ci-ntxiv rau- cov haujlwm khaws cia, suav nrog lub inverter lossis PCS architecture thiab txhua qhov tseem ceeb ntawm hluav taws xob lossis cov khoom siv hluav taws xob yog li cov kev xaiv 700W, 710W thiab 720W tuaj yeem muab piv rau qhov project tsim tiag.
